Haptics design and implementation

Guidance for adding haptic feedback to improve clarity, support inclusion, and create more intuitive experiences.

Jun 15, 2026 – The estimated reading time is 11 min.

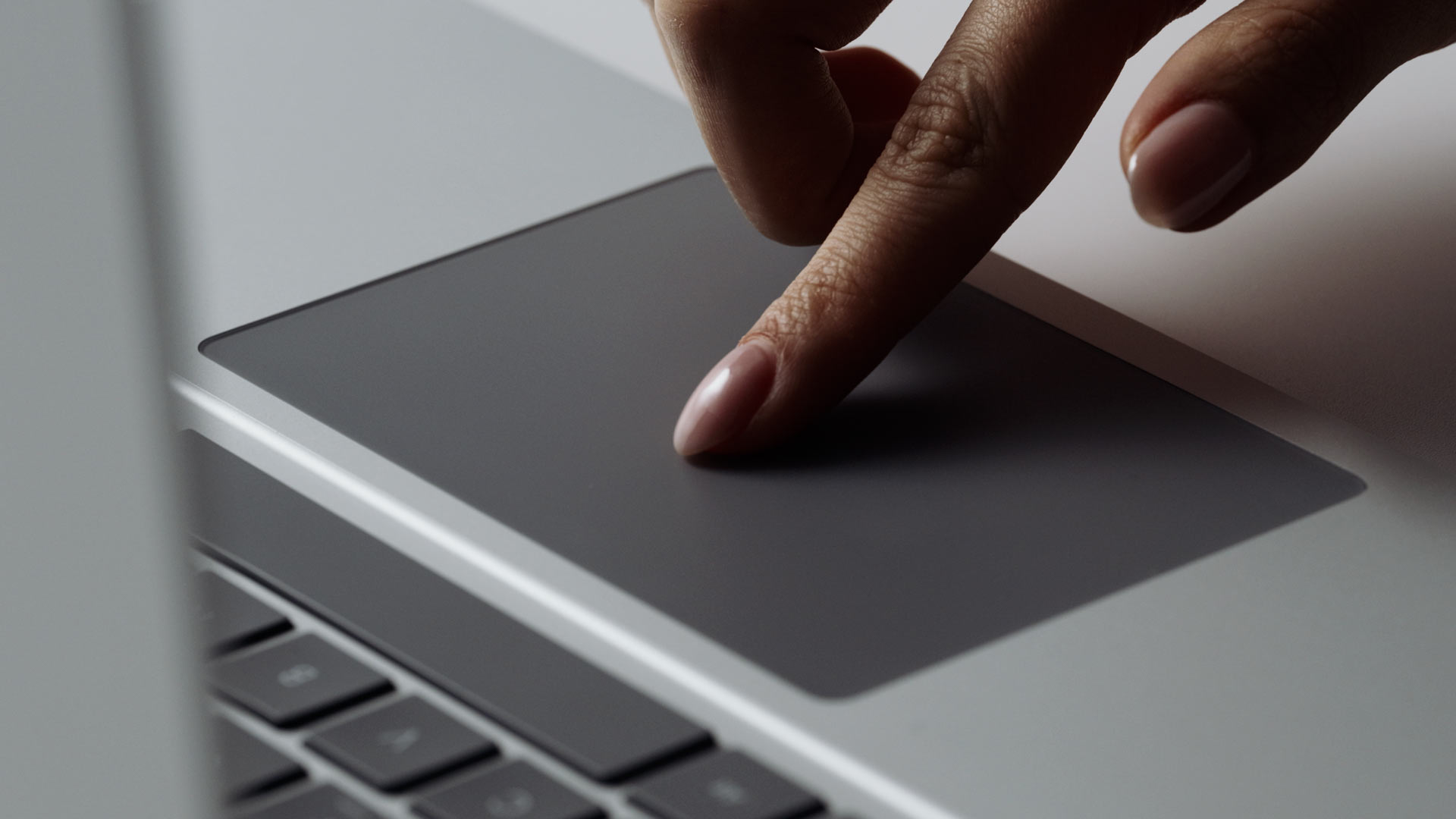

A close-up of a person’s hand using the touchpad on a laptop, with their index finger pressed on the trackpad and part of the keyboard visible nearby. — Introducing advanced haptics in Windows 11

Getting started with haptics

Touch helps people understand how the physical world responds to their actions through immediate feedback. In contrast, digital interfaces often rely on visual or auditory cues alone. Haptics add a sense of touch to digital interactions, making experiences feel more responsive and intuitive.

Windows now supports contextual haptic feedback through the InputHapticsManager API, enabling apps to deliver consistent experiences across supported devices.

Contents:

Implemtation examples

What is haptics?

Before diving in further, let’s briefly align on the basics:

Haptics [ˈhæp.tɪks]

Passive vs. Active Haptics

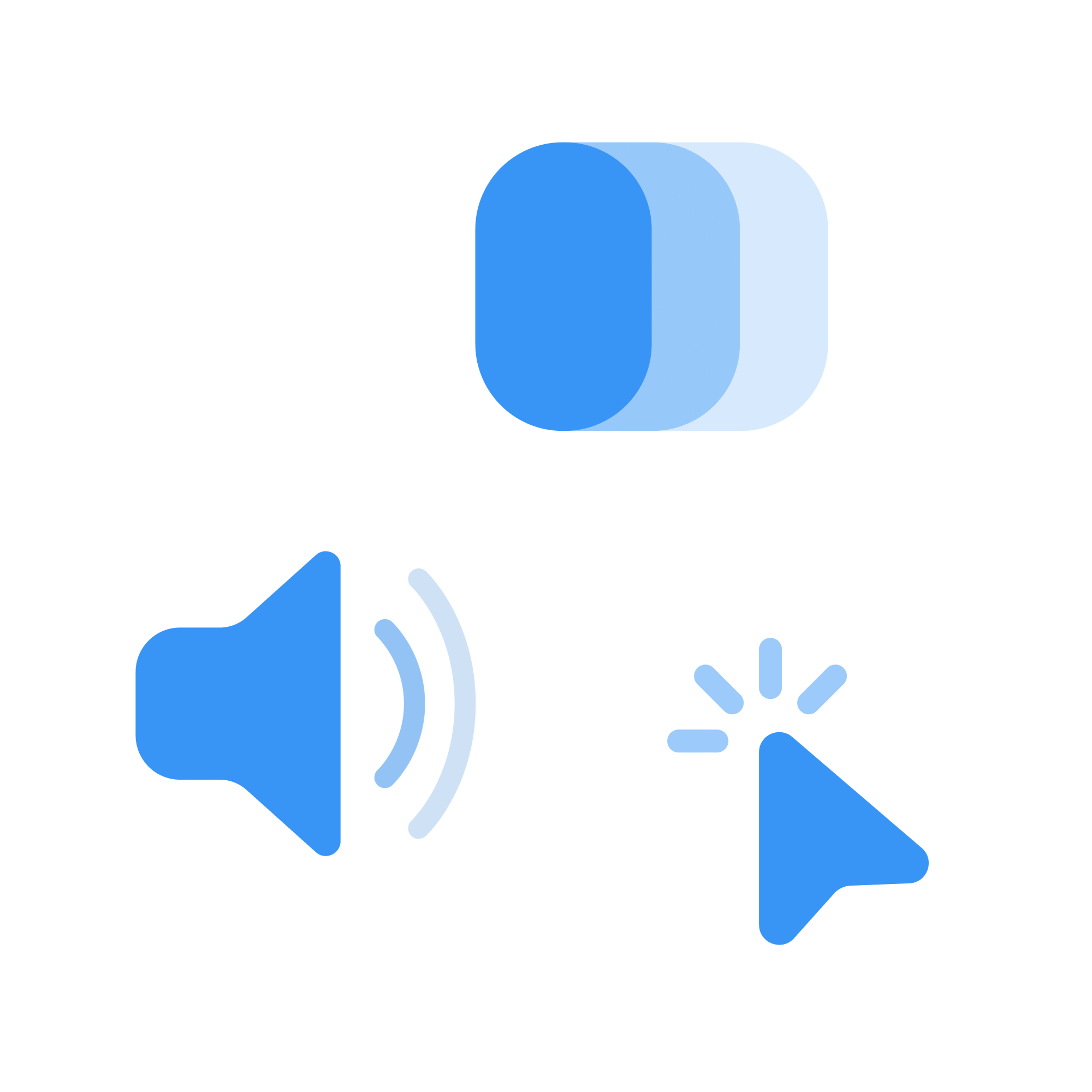

Multimodal Experiences

Why add haptics?

Clarity Haptic feedback reinforces interactions by providing a physical confirmation, helping make actions feel responsive and reducing uncertainty.

Inclusion Haptics extend feedback beyond visual and auditory channels, helping make interactions more accessible for users with different needs and preferences.

Delight Thoughtfully designed haptics bring interactions to life through subtle, expressive feedback—adding moments of delight beyond basic function.

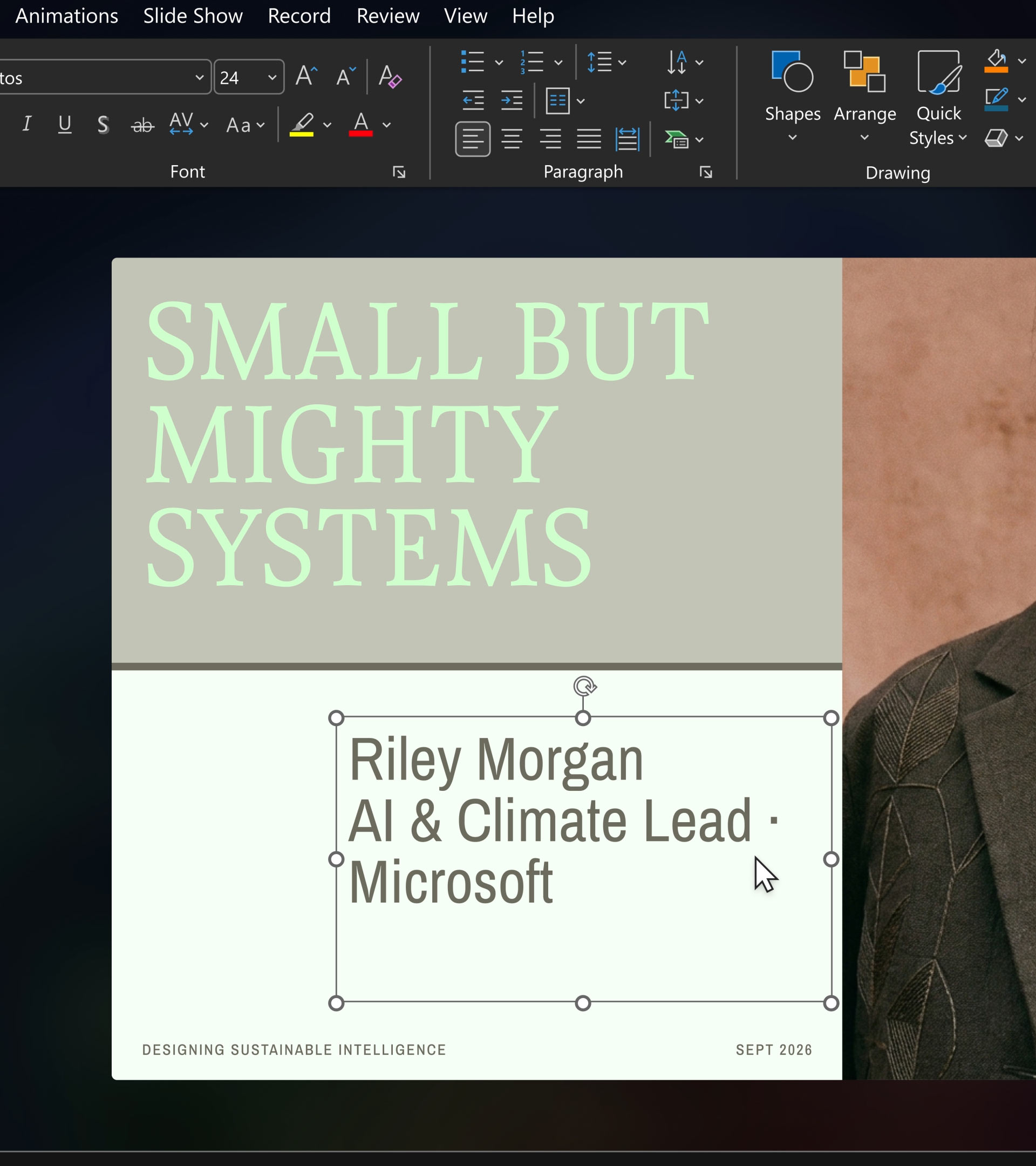

A PowerPoint slide titled "Small But Mighty Systems" features the name "Riley Morgan, AI & Climate Lead, Microsoft" and part of a person in a suit on the right. The presentation is about sustainable intelligence, dated September 2026. — Object alignment in PowerPoint

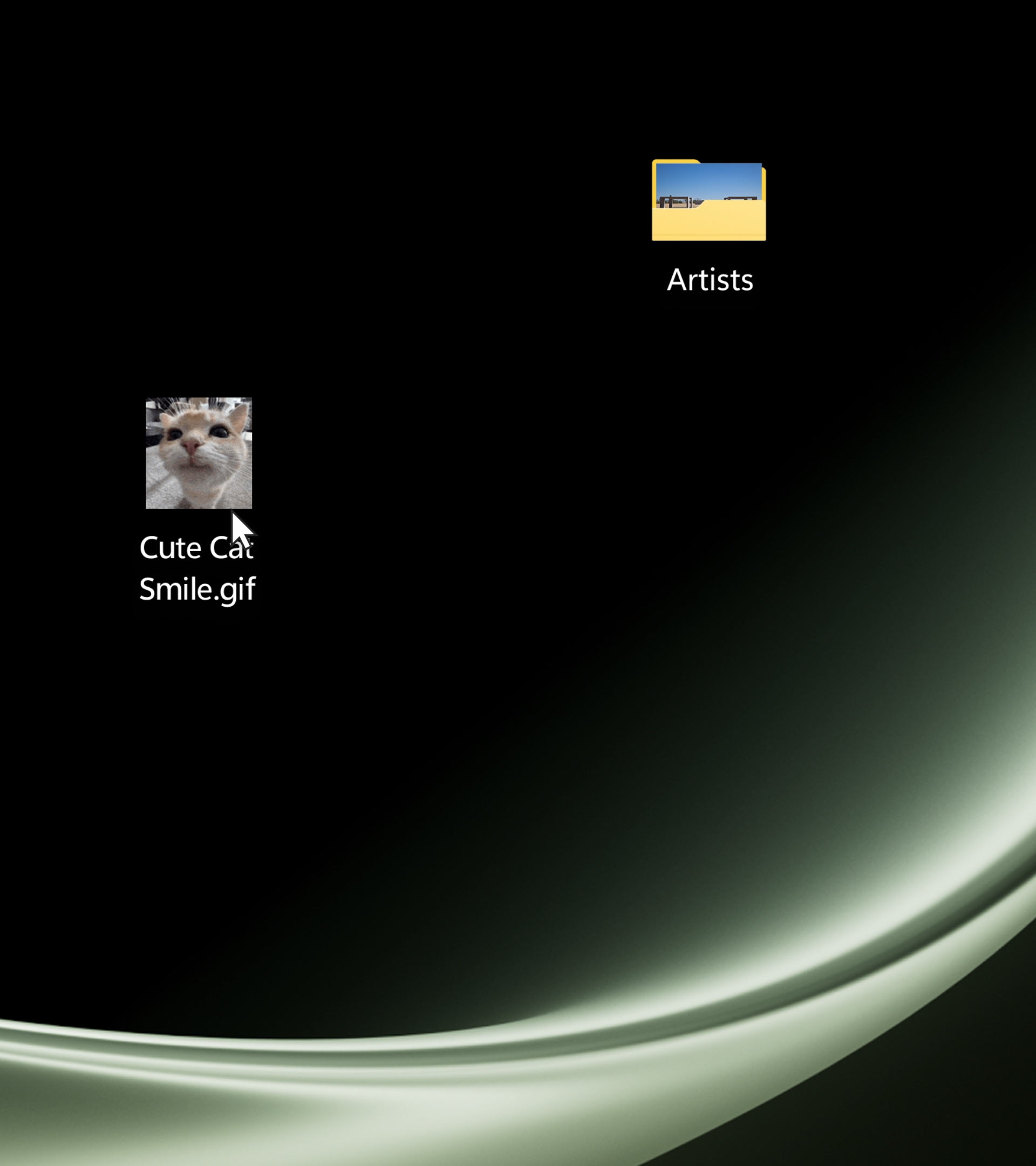

A computer desktop with a folder labeled "Artists" and a file labeled "Cute Cat Smile.gif," which shows a small image of a cat's face. The background is black with a light wave design. — Drag and drop interactions

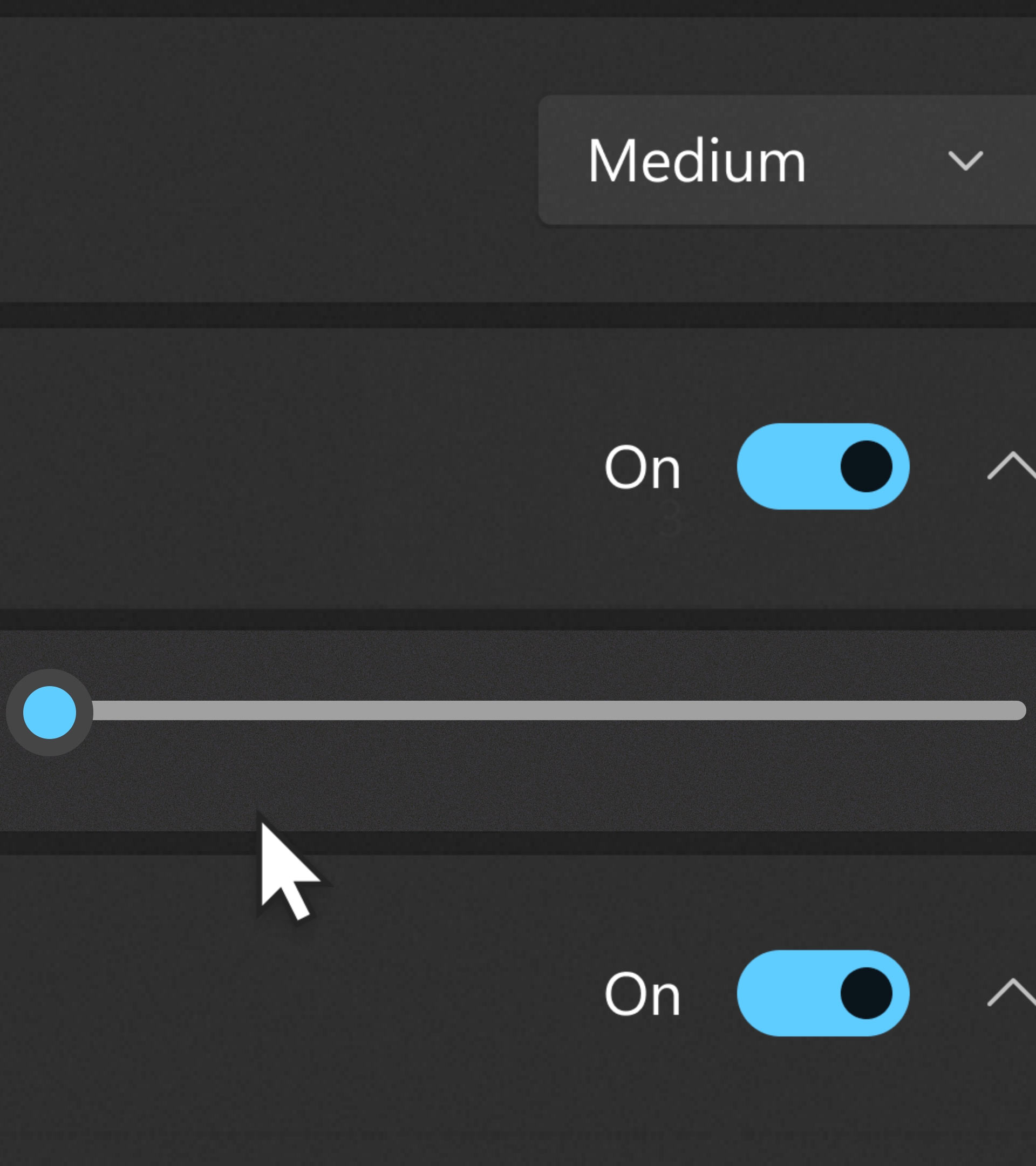

A user interface screen showing a slider with a blue handle, a dropdown menu set to "Medium," toggle switches set to "On," and a cursor pointing at the slider. — Sliders

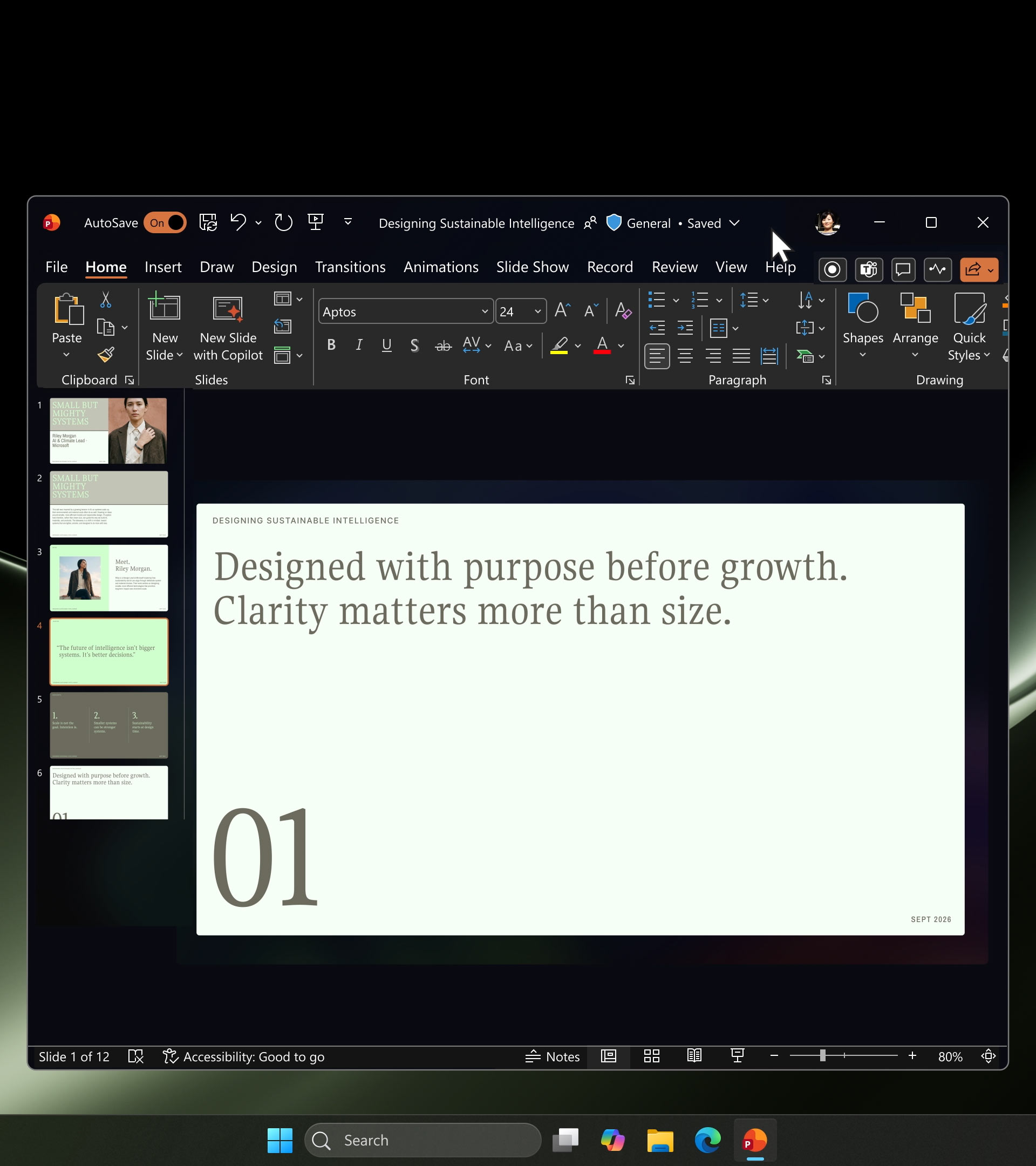

A PowerPoint presentation in dark mode is open on a Windows computer. The slide displayed reads: "Designed with purpose before growth. Clarity matters more than size. 01" with a simple, minimalist design. — Window snapping

Abstract image featuring overlapping translucent blue shapes with rounded edges, set against a white background, creating a modern and dynamic visual effect.

Haptic language

Windows provides a set of predefined haptic waveforms designed for common interaction patterns. Each waveform has a distinct feel and purpose, helping create consistent experiences across applications and devices.

Waveforms are defined by three characteristics:

Intensity
How strong the feedback feels.

Decay
How quickly the feedback  fades.

Sharpness
The character of the feedback, ranging from soft to crisp.

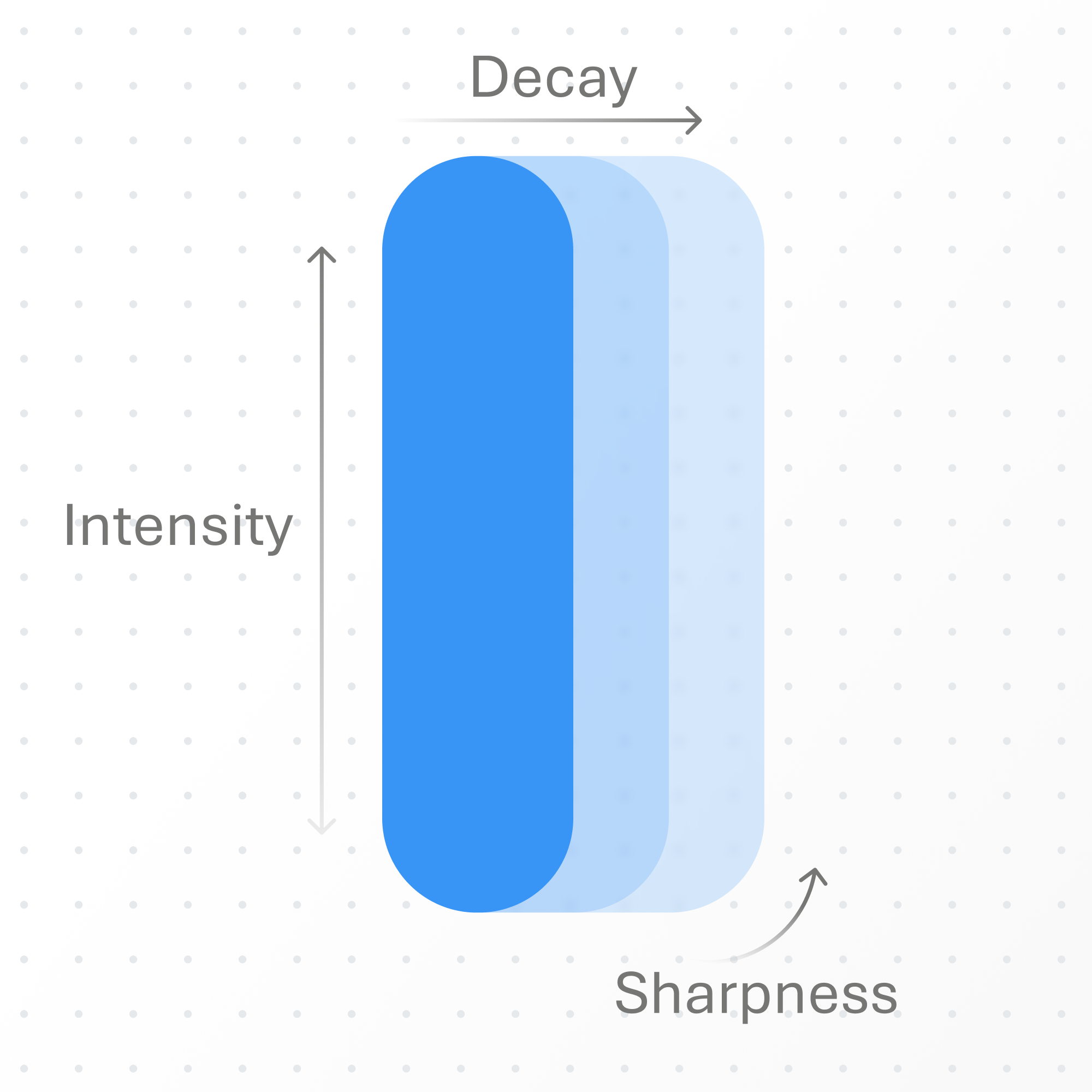

A blue 3D bar with arrows and labels indicating "Intensity" vertically, "Decay" to the right, and "Sharpness" diagonally upward. The background features a dotted grid.

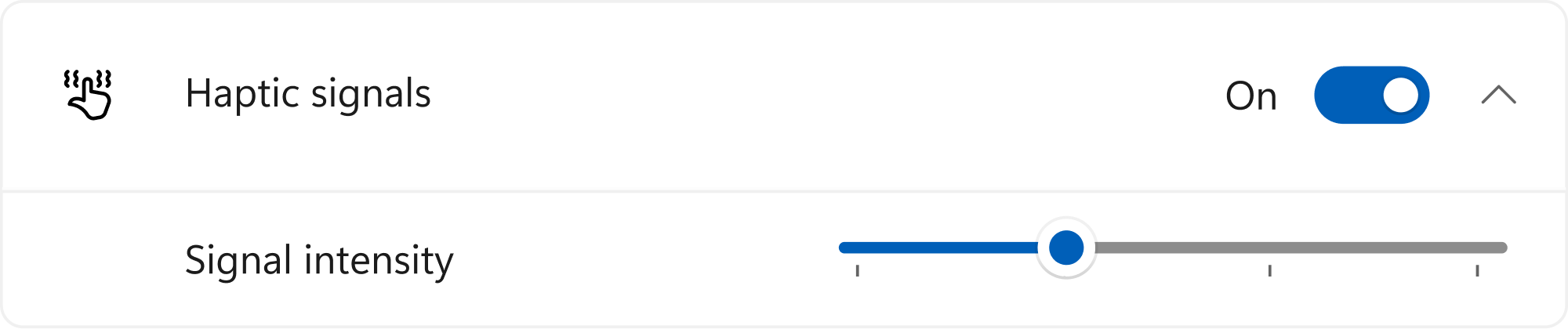

User control & intensity

Use the waveforms below to match feedback to specific interaction moments, such as alignment, boundaries, discrete changes, or completed actions.

Interaction feedback

Waveforms in this group provide feedback during an interaction.

Hover

A light pulse that indicates hover states, signaling an upcoming action

Collide

A soft pulse that indicates reaching a boundary or limit

Align

A sharp pulse when an object snaps to an alignment guide

Step

A firm pulse for discrete changes, such as moving through steps or values

Grow

A dynamic pulse that conveys motion, transitions, or intelligent system activity

Process confirmation

Waveforms in this group communicate the outcome of a completed action.

Success

An ascending pattern that confirms a completed action

Error

A descending pattern that indicates a failed action

When to use haptics?

Haptics should feel like a natural part of the interaction. Use them to reinforce user input, not distract from it.

The following principles guide when and how to use haptics effectively.

A stylized 3D blue square button with a white paper airplane icon in the center, set against a light blue and white abstract background with dotted lines and subtle gradients.

1. Establish a clear cause – effect relationship

Haptic feedback should act as a reliable response to user input. Reserve it for user-initiated actions to create a clear and intuitive connection.

To ensure interactions feel immediate, aim for a latency of less than 50 ms. Delays can weaken the connection between action and feedback.

A single blue, translucent square hovers above a light background with geometric lines and faint rectangles, creating a modern, minimalist design.

2. Provide signals, not noise

Haptics are most effective when used with clear intent. Not every interaction needs feedback – use it where it adds value.

The scenarios below show a few common patterns where haptics improve clarity and interaction.

Precision: Object Alignment

Purpose
Indicate when an object aligns to the edge or center of another object.

Trigger
While moving or resizing an object, the cursor snaps to an alignment guide.

Recommended Waveform
Align

Align

Action zones: Drop Target

Purpose
Indicate that an item can be dropped at the current location.

Trigger
Dragging an item over a valid drop target, such as dropping files into a folder or application.

Recommended Waveform
Hover

Hover

Detents: Slider

Purpose
Indicate discrete steps or values within a range.

Trigger
The control reaches a step or snaps to a value.

Recommended Waveform
Step

Step

Boundaries: Screen Edge

Purpose
Indicate that a boundary or edge has been reached.

Trigger
Dragging a window to the edge of the screen to activate Window snap.

Recommended Waveform
Collide

Collide

Abstract digital illustration featuring several floating blue squares of varying sizes, with soft shadows, arranged on a light blue and white geometric background. The overall design is modern and minimalist.

3. Provide haptics consistently

Apply haptics consistently across similar interactions so users can build a clear understanding of what each signal represents. Use waveforms for their intended purpose and avoid mixing patterns for the same interaction.

When combining haptics with visual or audio feedback, ensure they are aligned in timing and intensity. Well-designed haptics may go unnoticed, but their absence is felt.

Abstract digital artwork with curved, overlapping translucent shapes in shades of blue and white, creating a flowing, layered pattern. The design has a smooth, modern, and airy appearance.

Implementing haptics

Use the InputHapticsManager API to add haptic feedback to your app. The resources below include API documentation, hardware guidance, and reference implementations.

API Documentation Get started using the InputHapticsManager API Hardware implementation guide Building haptic support into hardware

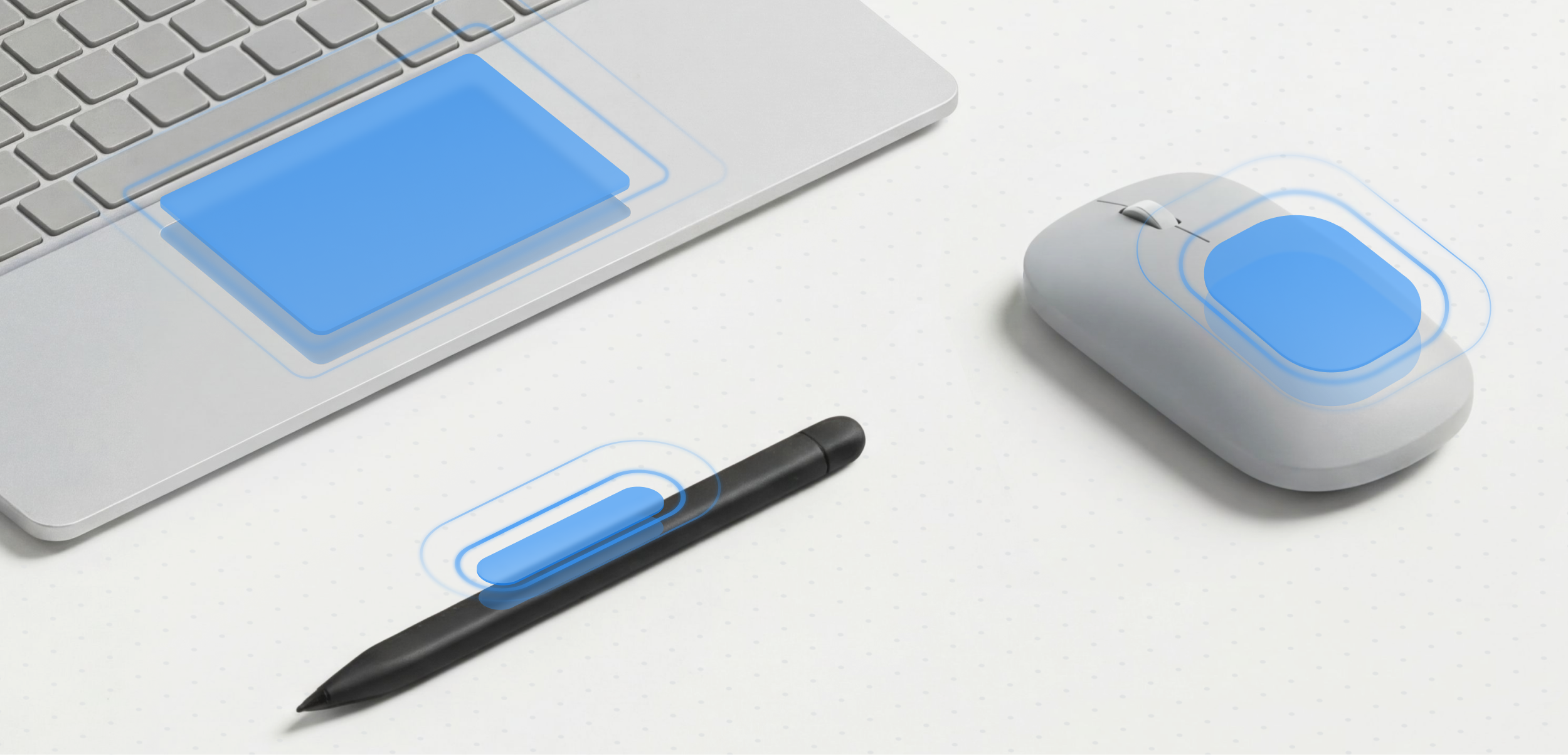

A laptop with a highlighted trackpad, a stylus pen, and a computer mouse with highlighted areas on a white surface, suggesting interactive touch or input zones. — Supported input device types by the InputHapticsManager API

Supported devices

Haptics are supported on input devices such as mouse, touchpad, and pen. Availability varies by model and manufacturer. See the current list of compatible devices for the InputHapticsManager API. This list is updated as new devices are added.

Supported device database A list of device models supporting the InputHapticsManager API

Implementation examples

Basic Usage

Use InputHapticsManager to trigger haptic waveforms on the input device that most recently delivered input to the current thread. Device detection and fallback are handled automatically.

Start haptic playback

using Windows.Devices.Haptics;

// Check whether the InputHapticsManager API is available
// and supported on the current system.
bool supported =
    ApiInformation.IsTypePresent("Windows.Devices.Input.InputHapticsManager") &&
    InputHapticsManager.IsSupported();

if (supported)
{
    var mgr = InputHapticsManager.GetForCurrentThread();

    // Trigger a known waveform. Pass 0 as fallback to let
    // the system pick a device-specific default.
    mgr.TrySendHapticWaveform(
        KnownSimpleHapticsControllerWaveforms.Align,
        0);
}

using Windows.Devices.Haptics;

// Check whether the InputHapticsManager API is available
// and supported on the current system.
bool supported =
    ApiInformation.IsTypePresent("Windows.Devices.Input.InputHapticsManager") &&
    InputHapticsManager.IsSupported();

if (supported)
{
    var mgr = InputHapticsManager.GetForCurrentThread();

    // Trigger a known waveform. Pass 0 as fallback to let
    // the system pick a device-specific default.
    mgr.TrySendHapticWaveform(
        KnownSimpleHapticsControllerWaveforms.Align,
        0);
}

Stop haptic playback

// Call on drag or interaction end to stop any ongoing playback.

InputHapticsManager
    .GetForCurrentThread()
    .TryStopFeedback();

// Call on drag or interaction end to stop any ongoing playback.

InputHapticsManager
    .GetForCurrentThread()
    .TryStopFeedback();

Interaction scenarios

Object Alignment

Alignment guides are common in design tools, presentation editors, and diagramming apps. Visual guides work, but they rely on a single sense. Users often need to zoom in or focus closely to confirm alignment. Haptic feedback adds a second channel, allowing users to feel when objects snap into place.

When to fire
When to fire Use the visual guide as the trigger. When your snap logic shows an alignment guide, fire the haptic. No additional calculation is needed—the guide’s appearance is the event. If the guide doesn’t appear, don’t fire haptics.

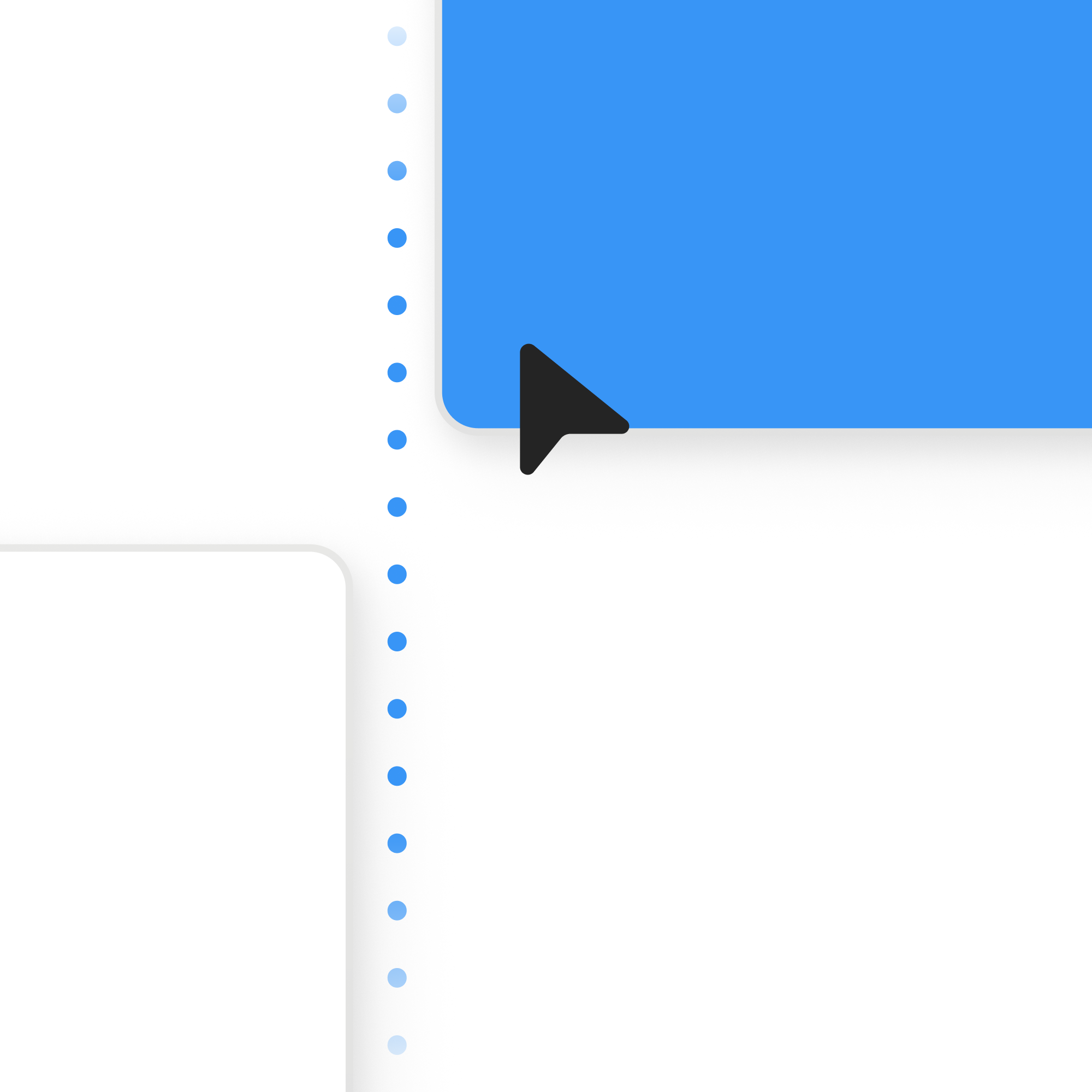

A black triangular cursor points to the corner of a blue rectangle. A vertical dotted blue line divides the white background, with faint gray borders around two white boxes in the layout.

Avoid duplicates
Fire one haptic per snap event. A shape can align to multiple guides at once (for example, left and top edges). Treat this as a single interaction—track active guides and only fire when a new guide appears.

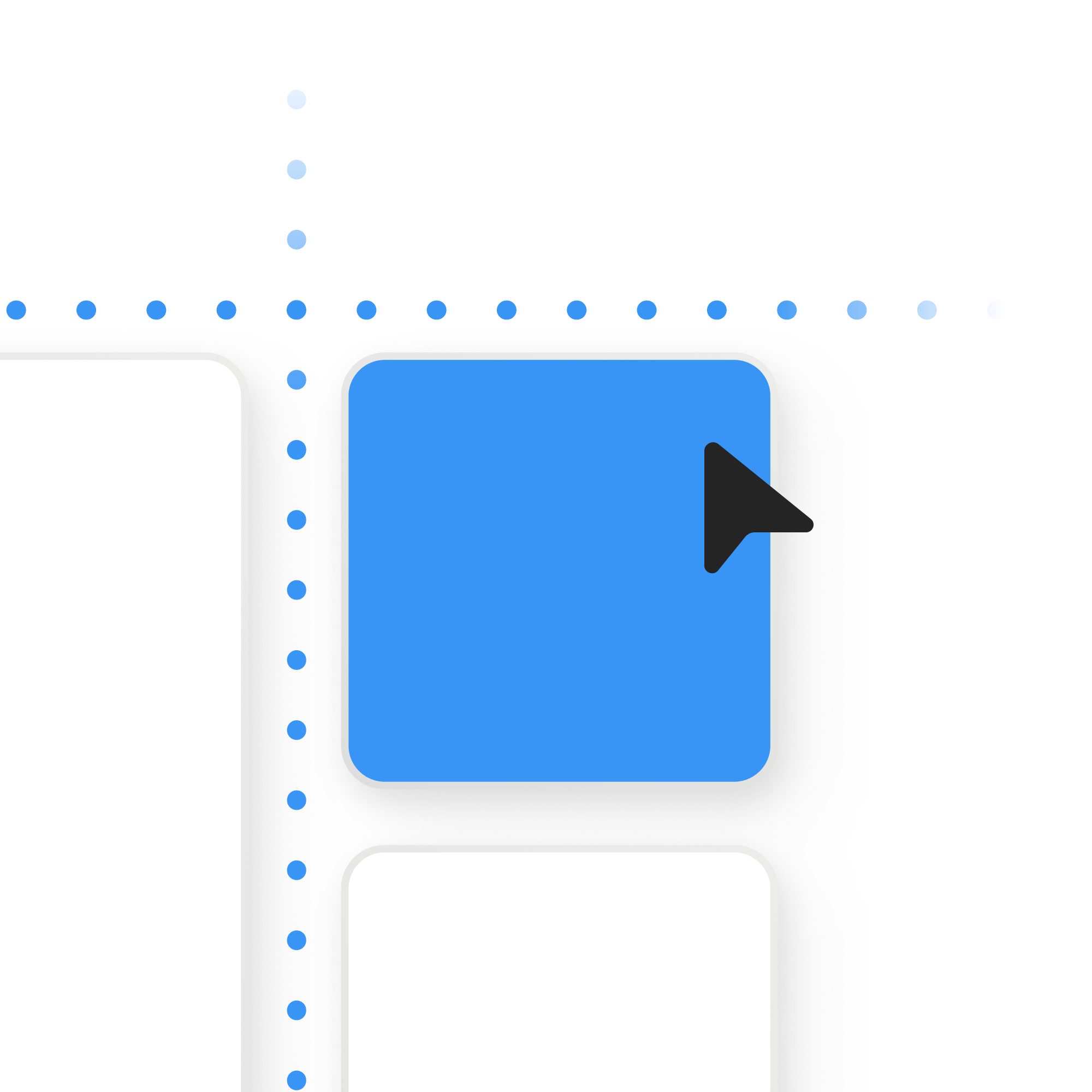

A blue square with rounded corners is selected by a black cursor. Blue dotted lines intersect behind the square, dividing the white background into sections.

Object Alignment

using Windows.Devices.Haptics;

private readonly HashSet<int> _activeGuides = new();

// After computing the currently visible guides, send haptic feedback
// only when a guide becomes visible for the first time.
var currentGuides = GetVisibleGuideIds();

bool hasNewGuide = currentGuides
    .Except(_activeGuides)
    .Any();

_activeGuides = currentGuides.ToHashSet();

if (hasNewGuide)
{
    InputHapticsManager.GetForCurrentThread()
        .TrySendHapticWaveform(
            KnownSimpleHapticsControllerWaveforms.Align,
            0);
}

using Windows.Devices.Haptics;

private readonly HashSet<int> _activeGuides = new();

// After computing the currently visible guides, send haptic feedback
// only when a guide becomes visible for the first time.
var currentGuides = GetVisibleGuideIds();

bool hasNewGuide = currentGuides
    .Except(_activeGuides)
    .Any();

_activeGuides = currentGuides.ToHashSet();

if (hasNewGuide)
{
    InputHapticsManager.GetForCurrentThread()
        .TrySendHapticWaveform(
            KnownSimpleHapticsControllerWaveforms.Align,
            0);
}

Sliders

Sliders are another case where haptics can improve interaction, but only when tied to meaningful positions. Anchor feedback to visible markers the user can understand.

When to fire

Fire haptics at slider tick marks. For example, a slider with ticks at 0, 25, 50, 75, and 100 should trigger feedback as the thumb crosses each tick. Avoid firing continuously between ticks, as this can feel distracting.

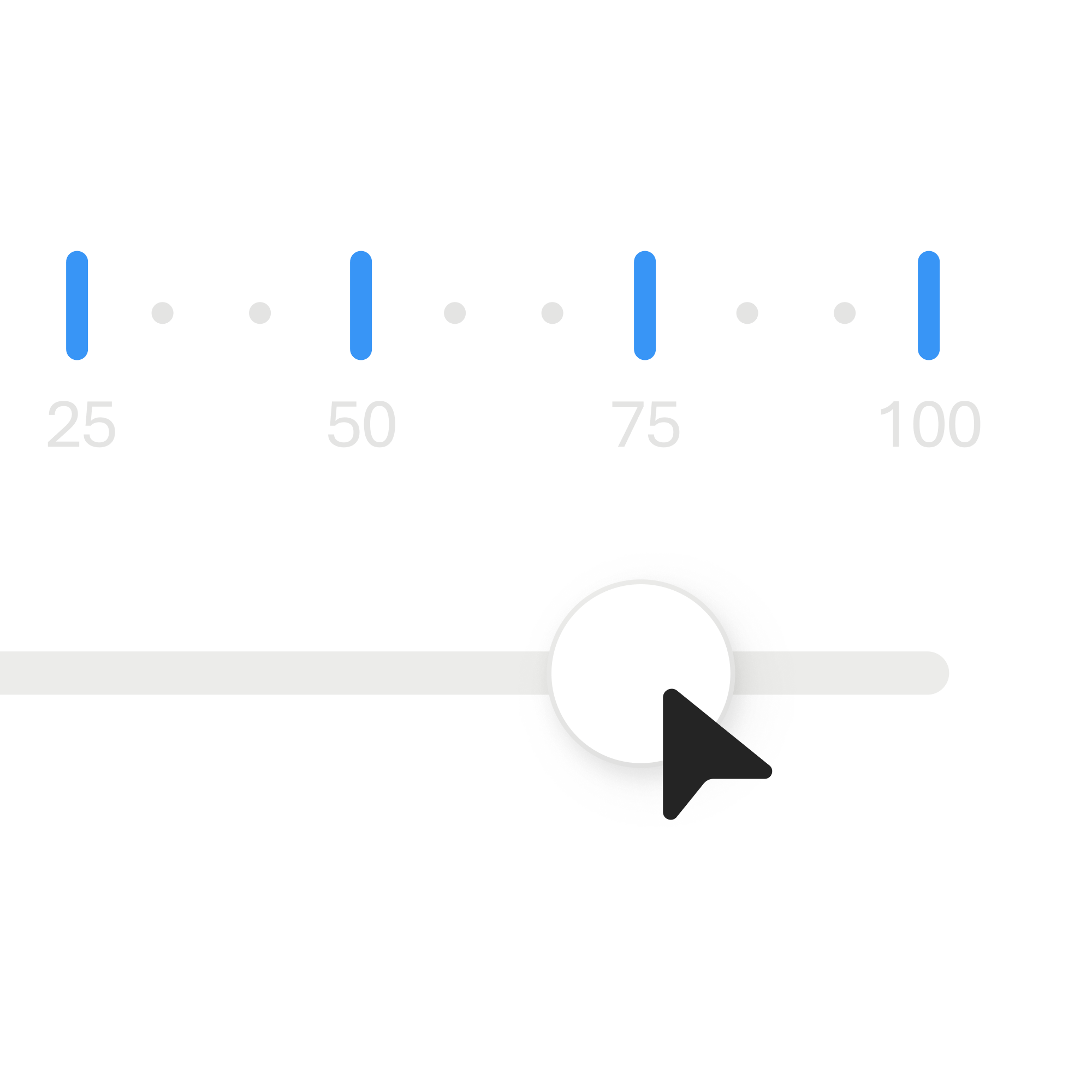

A slider set at about 80, with tick marks and numbers at 25, 50, 75, and 100. A black cursor points to the slider’s circular handle.

Slider ticks

using Windows.Devices.Haptics;

double previousValue;
double tickInterval = 25.0;

void OnSliderValueChanged(double newValue)
{
    int previousTick =
        (int)(previousValue / tickInterval);

    int currentTick =
        (int)(newValue / tickInterval);

    // Fire haptics when crossing a tick.

    if (currentTick != previousTick)
    {
        InputHapticsManager.GetForCurrentThread()
            .TrySendHapticWaveform(
                KnownSimpleHapticsControllerWaveforms.Step,
                0);
    }

    previousValue = newValue;
}

using Windows.Devices.Haptics;

double previousValue;
double tickInterval = 25.0;

void OnSliderValueChanged(double newValue)
{
    int previousTick =
        (int)(previousValue / tickInterval);

    int currentTick =
        (int)(newValue / tickInterval);

    // Fire haptics when crossing a tick.

    if (currentTick != previousTick)
    {
        InputHapticsManager.GetForCurrentThread()
            .TrySendHapticWaveform(
                KnownSimpleHapticsControllerWaveforms.Step,
                0);
    }

    previousValue = newValue;
}

Refine the experience

The basic implementation uses the same feedback at each tick. To provide additional context, scale the haptic intensity based on the slider’s position. This helps users sense where they are within the range, not just that a tick was crossed.

Use the three-parameter overload of TrySendHapticWaveform, which accepts an intensity value from 0.0 to 1.0, and map the slider position to this range. For example, lower values can produce lighter feedback, while higher values feel stronger.

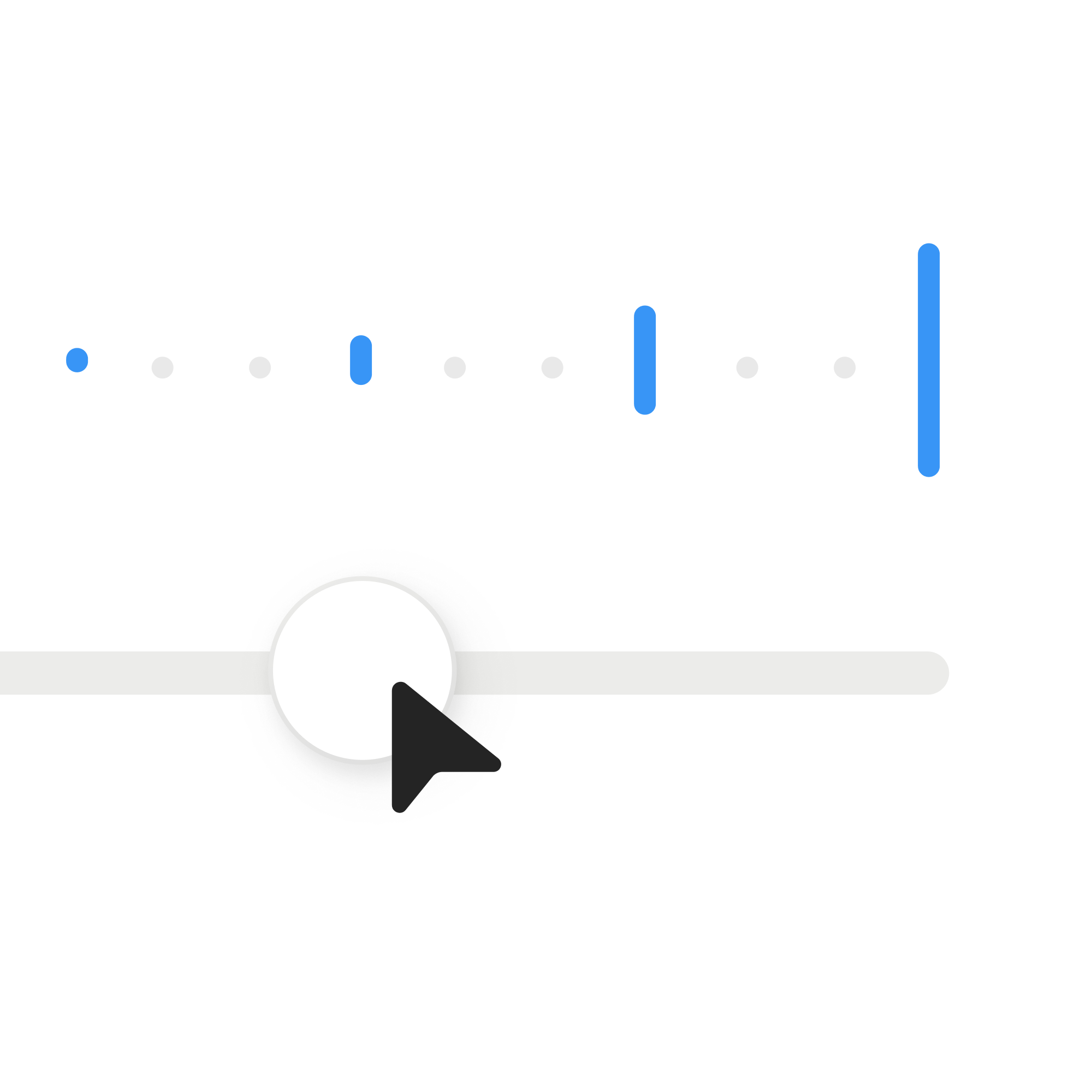

A digital slider with a circular handle being dragged by a black cursor. Blue vertical bars of varying heights appear above the slider, representing different values or levels.

Intensity scaling

// Determine whether the thumb moved to a different tick.

int previousTick =
    (int)(previousValue / tickInterval);

int currentTick =
    (int)(newValue / tickInterval);

// Fire haptics only when crossing a tick.

if (currentTick != previousTick)
{
    // Convert the tick position into a normalized
    // intensity value between 0.0 and 1.0.

    double tickValue =
        currentTick * tickInterval;

    double intensity =
        (tickValue – slider.Minimum) /
        (slider.Maximum – slider.Minimum);

    InputHapticsManager.GetForCurrentThread()
        .TrySendHapticWaveform(
            KnownSimpleHapticsControllerWaveforms.Step,
            0,
            intensity);
}

previousValue = newValue;

// Determine whether the thumb moved to a different tick.

int previousTick =
    (int)(previousValue / tickInterval);

int currentTick =
    (int)(newValue / tickInterval);

// Fire haptics only when crossing a tick.

if (currentTick != previousTick)
{
    // Convert the tick position into a normalized
    // intensity value between 0.0 and 1.0.

    double tickValue =
        currentTick * tickInterval;

    double intensity =
        (tickValue - slider.Minimum) /
        (slider.Maximum - slider.Minimum);

    InputHapticsManager.GetForCurrentThread()
        .TrySendHapticWaveform(
            KnownSimpleHapticsControllerWaveforms.Step,
            0,
            intensity);
}

previousValue = newValue;

Intent-Based Event Filtering

During a drag, an object can cross many alignment boundaries—page center, guides, and other objects. Triggering haptics at every crossing can overwhelm users, especially during fast movements when they are repositioning rather than trying to be precise.

Instead, use intent to determine when to fire haptics. The goal is to trigger feedback only when the user is trying to be precise and land on a specific position.

Approach 1: Speed Filter

Filter by speed
Some apps may choose to suppress haptics above a speed threshold so feedback is reserved for slower, more deliberate movement.

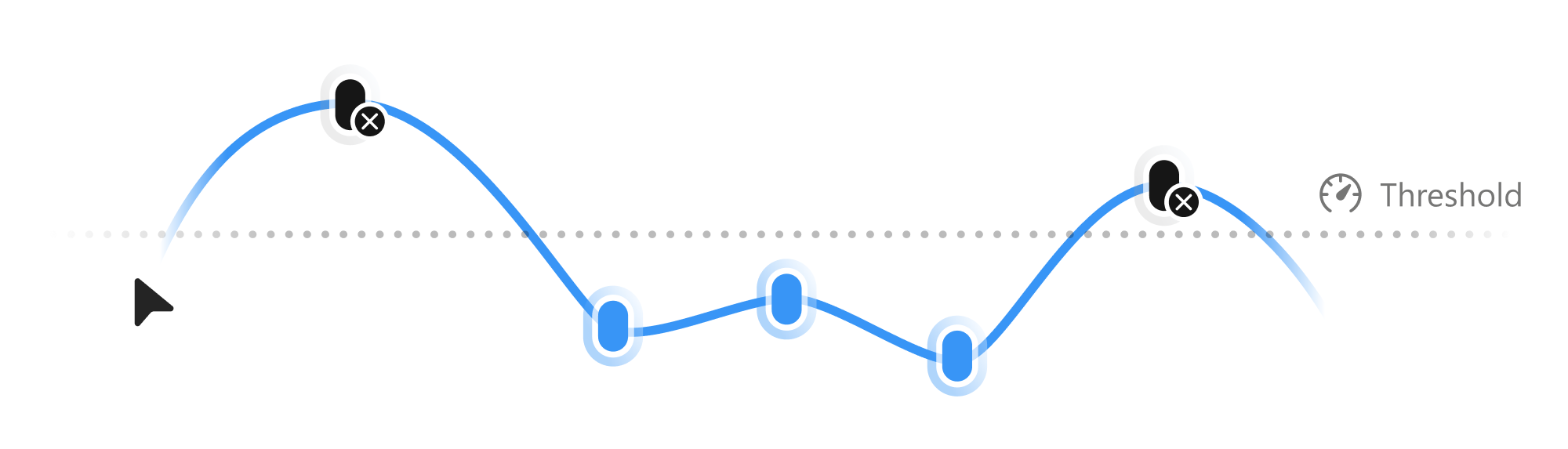

A blue line graph with six points, showing an upward and downward trend. Two points above a dotted "threshold" line are marked with black circles and X symbols, indicating they exceed the threshold.

Stabilize the signal
Avoid using raw cursor deltas directly, as they can be noisy and vary across input types, DPI settings, and display configurations. Normalize and smooth the signal to produce more consistent behavior across devices.

Choose an appropriate threshold
Speed thresholds require careful tuning and validation across different devices, input types, display scales, and multi-display setups. Use a threshold that reliably separates traversing from aligning without suppressing intentional interactions.

Approach 2: Timer Debounce

Delay the trigger
When an object enters a trigger zone, start a short timer (for example, 50 ms). If the object remains in place when the timer completes, treat it as intentional and fire the haptic.

Suppress transient movement
If the object moves on before the timer completes, treat it as a pass-through and suppress the feedback.

Choose an appropriate delay
A short delay is enough to distinguish deliberate alignment from a quick pass, while remaining below the threshold of noticeable latency.

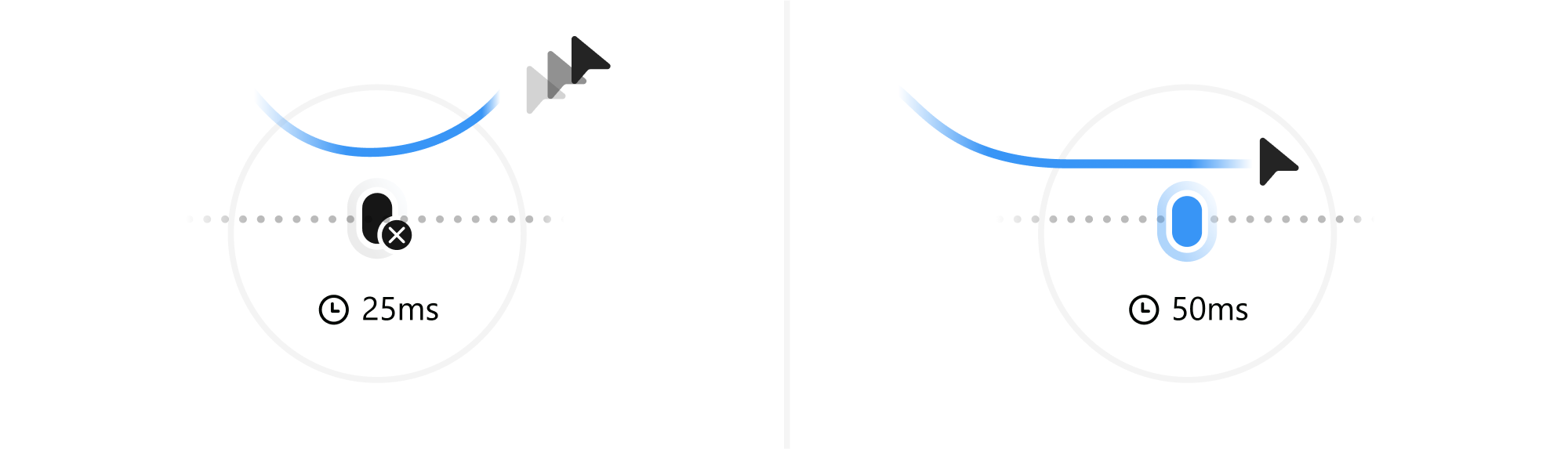

Two diagrams compare reaction times: the left shows a delayed response at 25 ms, indicated by a black cursor and faded arrows; the right shows a smoother, more responsive cursor movement at 50 ms.

Speed filter vs. debounce

Speed filtering is reactive, measuring movement in real time. Debounce is predictive, waiting briefly to confirm intent.

Both are effective. Speed filtering can feel more immediate, but requires careful tuning to avoid noisy or inconsistent feedback. Debounce is simpler to implement and tends to be more stable. The sample app allows you to compare both approaches.

To stay in the know with Microsoft Design, follow us on Twitter and Instagram, or join our Windows or Office Insider program. And if you are interested in working with us at Microsoft, head over to aka.ms/DesignCareers.
